Description

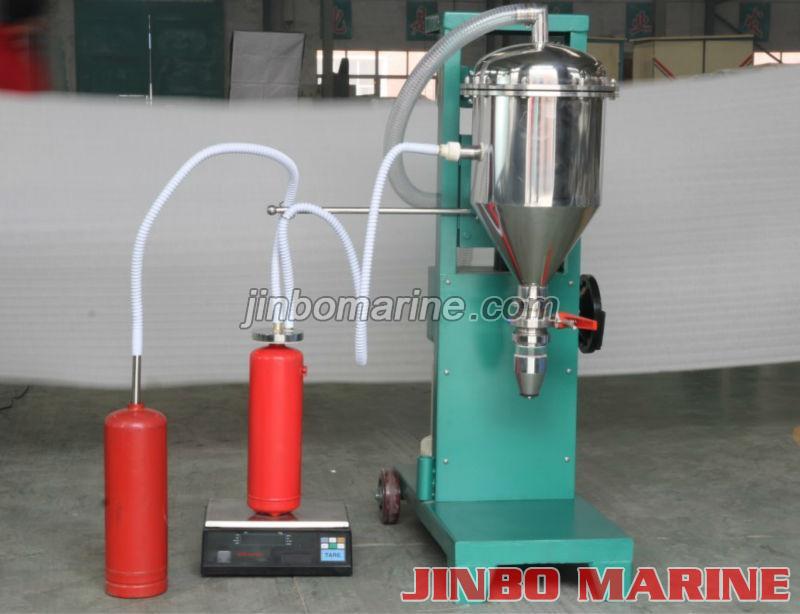

GFM16-1 Fire Extinguisher Dry Powder Filling Machine
GFM16-1 fire extinguisher dry powder filling machine is a new product developed by our factory after absorbing the advantages of powder fillers at home and abroad. It can quickly suck dry powder into the cylinder and be directly filled in the container by vacuum fluidics, and it can also conduct sucking and filling simultaneously.
It features small volume, easy movement,simple operation and lack of environmental pollution. Thus labor intensity is
decreased and work environment is improved. It is especially suitable for the filling, production and maintenance of dry powder extinguisher and also suitable for filling various powder products. So it is an ideal equipment in the powder filling industry.
GFM16-1 fire extinguisher dry powder filling machine have two types,one type adopt normal steel powder cylinder,the other one adopt stainless steel powder cylinder.
Terchnical parameters
Volume:870×590×1320mm
Weight:110kg
Voltage:AC 380V
Power:1.1KW
Filling rate:5kg/min
Filling residue:1kg≤0.04
Structure
1.Electronic scale
2.Filling and cover
3.Powder suction pipe
4.Powder source
5.Air suction pipe 6.Switch of powder cylinder
7.Valve 8.Powder cylinder 9.Main air pipe
10.Electric box
11.Frame
12.Direction valve
13.Push rod 14.Elevating wheel
15.Pump-line
16.Observation window 17.Air pump 18.Fire extinguisher
19.Fire extinguisher
Our advantages
Fast delivery,excellent quality,good after service.
